904L is a highly alloyed, low carbon containing, non-stabilized austenitic stainless steel grade. Copper has been added to the alloy of 904L Stainless Steel Pipe. Hence, its resistance to strong reducing acids such as sulfuric acid is very high. The lower content of carbon makes it easier to produce the AISI 904L Welded Pipe according to specification ASTM A312. Though the content of carbon is lower, these pipes could be used for high temperature applications.
The significant inclusion of nickel to the alloy of ASME SA 312 TP904L makes it possible for the pipes to have an outstanding performance even in elevated settings. Along with being a non-magnetic alloy, the Stainless Steel 904L Pipe also exhibits good resistance to stress related corrosion cracking.
The presence of molybdenum in the alloy reduces the occurrence of crevice corrosion. Along with being used in applications between moderate to high temperatures, the ASTM A312 TP904L is primarily useful for general corrosion applications.
904L pipes undergo mechanical testing such as transverse or longitudinal tensile testing and flattening testing to achieve consistency in their axial performance. According to ASTM A312 standards, each 904L pipe must be supplied in a heat-treated condition, with appropriate heat-treating temperatures and rationale for cooling or testing.

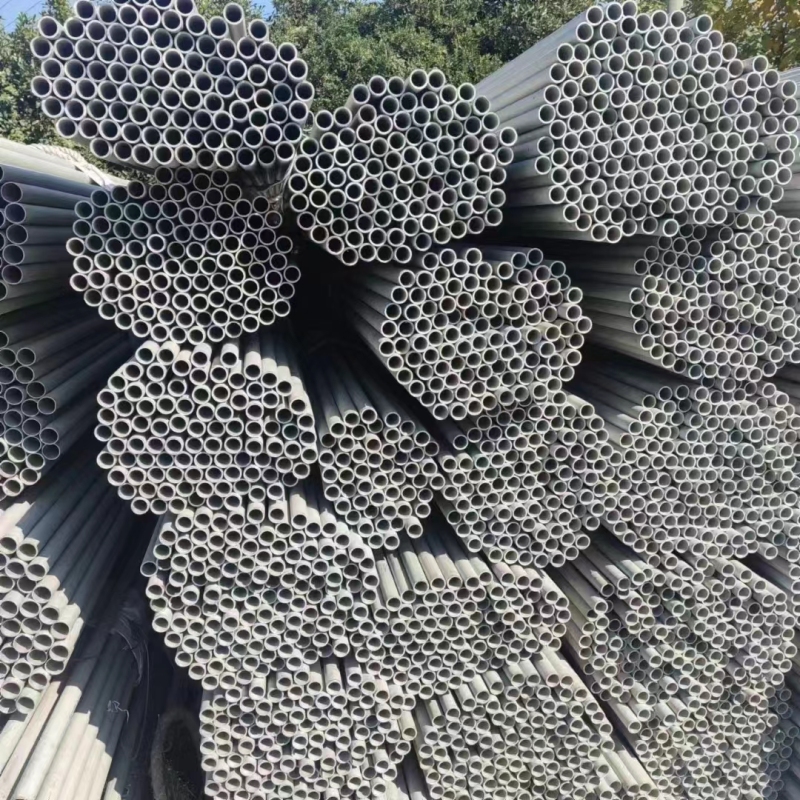

Grade 904L Stainless Steel Seamless Pipe
Grade 904L Stainless Steel Welded Pipe
904L Pipe International Specification |
|
Standard Specification | ASME, ASTM, AISI, AMS, JIS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
Grade 904L Stainless Steel Seamless Pipe Size |
|
ASTM A312 TP 904L Welded Pipe Size |
|
SS 904L EFW Pipe Size |
|
AISI 904L Stainless Steel Pipe WT | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
SS 1.4539 Pipe manufacturing techniques | Seamless / ERW / EFW/ Welded / Fabricated / CDW/ LSAW/ Seam-Welded / Redrawn |
Origin of 904L EN 1.4539 pipe material | Indian, European, Korean, Japanese |
AISI 904L Pipe End Types |
|
Form | Round, Square, Rectangular |
904L SS Pipe Length | Single Random, Double Random & Required Length End: Plain End, Beveled End, Treaded |
ASTM B677 UNS N08904 904L Pipe Delivery Condition | Annealed and Pickled, Hot Finished, Polished, Bright Annealed, Cold Drawn |
904L Stainless Steel Pipe Packing |
|
Alloy 904L Pipe Value Added Services | Cut to size, thread, and groove |
Port | Mumbai, India |
Stocking distributor of leading 904L Pipe manufacturers |
|
Alloy 904L Pipe Dimensional Specification | ANSI/ ASME B36.10, B36.19, B2.1 |
Marking on 904L Alloy Pipe |
|
NOMINAL | O.D. INCHES | 10S | 10 | 40S & STD | 40 | 80S & E.H. | 80 | 160 |
---|---|---|---|---|---|---|---|---|
1/8 | .405 | .049 | .049 | .068 | .068 | .095 | .095 | |
1/4 | .540 | .065 | .065 | .088 | .088 | .119 | .119 | |
3/8 | .675 | .065 | .065 | .091 | .091 | .126 | .126 | |
1/2 | .840 | .083 | .083 | .109 | .109 | .147 | .147 | .187 |
3/4 | 1.050 | .083 | .083 | .113 | .113 | .154 | .154 | .218 |
1 | 1.315 | .109 | .109 | .133 | .133 | .179 | .179 | .250 |
1 1/4 | 1.660 | .109 | .109 | .140 | .140 | .191 | .191 | .250 |
1 1/2 | 1.900 | .109 | .109 | .145 | .145 | .200 | .200 | .281 |
2 | 2.375 | .109 | .109 | .154 | .154 | .218 | .218 | .343 |
2 1/2 | 2.875 | .120 | .120 | .203 | .203 | .276 | .276 | .375 |
3 | 3.500 | .120 | .120 | .216 | .216 | .300 | .300 | .437 |
3 1/2 | 4.000 | .120 | .120 | .226 | .226 | .318 | .318 | |
4 | 4.500 | .120 | .120 | .237 | .237 | .337 | .337 | .531 |
4 1/2 | 5.000 | .247 | .355 | |||||
5 | 5.563 | .134 | .134 | .258 | .258 | .375 | .375 | .625 |
6 | 6.625 | .134 | .134 | .280 | .280 | .432 | .432 | .718 |
7 | 7.625 | .301 | .500 | |||||
8 | 8.625 | .148 | .148 | .322 | .322 | .500 | .500 | .906 |
9 | 9.625 | .342 | .500 | |||||
10 | 10.750 | .165 | .165 | .365 | .365 | .500 | .593 | 1.125 |
11 | 11.750 | .375 | .500 | |||||
12 | 12.750 | .180 | .180 | .375 | .406 | .500 | .687 | 1.312 |
14 | 14.000 | .188 | .250 | .375 | .437 | .500 | .750 | 1.406 |
16 | 16.000 | .188 | .250 | .375 | .500 | .500 | .843 | 1.593 |
18 | 18.000 | .188 | .250 | .375 | .562 | .500 | .937 | 1.781 |
