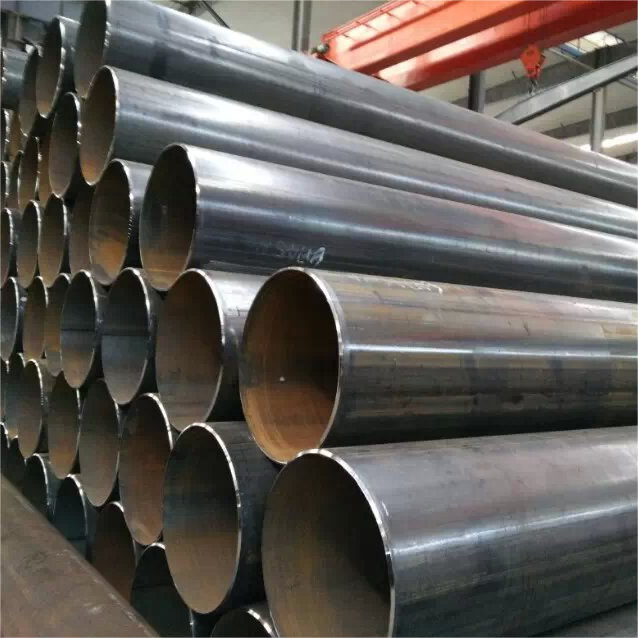

LSAW PIPE, 40 Inch * 9.52mm, API 5L GR.B, (SUBMERGED ARC WELDED) LSAW, BE, LENGTH 12M
Name: LSAW PIPE
Size: 40 Inch.
Wall Thickness: 9.52 mm.
Straight Length: 12 meters.
Material: API 5L GR.B.
Ends: Bevelled Ends.
Standard: API 5L.
Seamless and Welded (ERW, LSAW, SSAW/HSAW) Types
Seamless Type: Inlcuding hot rolled seamless for pipe diameter above 3 inch, cold rolled seamless below 3 inch.
ERW Welded Type: Electric Resistance Welded, for pipe diameter below 24 inch.
LSAW Type: Longitudinal Sub-merged Arc Welding, for pipe OD 20 inch to 48 inch. LSAW also called JCOE, it means pipe manufacturing shapes from J shape, C shape, O shape, and then cold expanding.
SSAW/HSAW Type: Spiral Sub-merged Arc Welding or Helical SAW, for pipe OD up to 100 inch.
Grade: API 5L Grade B Pipe
Manufacturing type: Seamless, ERW, LSAW, SSAW/HSAW
Outer Diameters: 1/2” – 60”
Thickness: SCH 20, SCH 40, SCH STD, SCH 80 to SCH 160
Range of Length: SRL, DRL, 20FT, 40FT, 5 – 12 meter
Product Specification Level: PSL1, PSL2, Sour Services
Ends: Plain, Beveled
Coatings: FBE, 3PE/3LPE, Black Painting, Varnished
| Specification | API 5L |
|---|---|
| Type | Longitudinal Submerged Arc Welded Pipes |
| Outer Diameter Sizes in inch | 12 To 150 |
| Schedule | Schedule 80S, Schedule XXS, Schedule 80, Schedule10, Schedule 40, Schedule 160, Schedule XS, Schedule 5 Supplier and Manufacturer |
| Length in meter | 5 To 7 |
| Pipe Ends | Beveled / Plain / Coupling |
| Surface Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
PSL1
| Gr | Chemical Formula | Mechanical Behaviour | |||||||
| Carbon | Manganese | Phosphorus | Sulfur | Tensile Strength | Yield Strength | ||||
| Pound-force per square inch * 1000 | Megapascal | Pound-force per square inch * 1000 | Megapascal | ||||||
| A25 | CLI | 0.21 | 0.60 | 0.030 | 0.030 | 45 | 310 | 25 | 172 |
| CL II | 0.21 | 0.60 | 0.030 | 0.030 | |||||
| Grade B | 0.26 | 1.20 | 0.030 | 0.030 | 60 | 414 | 35 | 241 | |
| Grade A | 0.22 | 0.90 | 0.030 | 0.030 | 48 | 331 | 30 | 207 | |
| X42 | 0.26 | 1.30 | 0.030 | 0.030 | 60 | 414 | 42 | 290 | |
| X52 | 0.26 | 1.40 | 0.030 | 0.030 | 66 | 455 | 52 | 359 | |
| X46 | 0.26 | 1.40 | 0.030 | 0.030 | 63 | 434 | 46 | 317 | |
| X56 | 0.26 | 1.40 | 0.030 | 0.030 | 71 | 490 | 56 | 386 | |
| X65 | 0.26 | 1.45 | 0.030 | 0.030 | 77 | 531 | 65 | 448 | |
| X60 | 0.26 | 1.40 | 0.030 | 0.030 | 75 | 517 | 60 | 414 | |
| X70 | 0.26 | 1.65 | 0.030 | 0.030 | 82 | 565 | 70 | 483 | |
| Gr | Chemical Formula | Mechanical Behaviour | ||||||||||
| Carbon | Manganese | Phosphorus | Sulfur | Tensile Strength | Yield Strength | Impact Energy | ||||||
| Pound-force per square inch * 1000 | Megapascal | Pound-force per square inch * 1000 | Megapascal | PCM | IIW | J | FT/LB | |||||
| Grade B | 0.22 | 1.20 | 0.025 | 0.015 | 60-110 | 414-758 | 35-65 | 241-448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X46 | 0.22 | 1.40 | 0.025 | 0.015 | 63-110 | 434-758 | 46-76 | 317-524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X42 | 0.22 | 1.30 | 0.025 | 0.015 | 60-110 | 414-758 | 42-72 | 290-496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X52 | 0.22 | 1.40 | 0.025 | 0.015 | 66-110 | 455-758 | 52-77 | 359-531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X60 | 0.22 | 1.40 | 0.025 | 0.015 | 75-110 | 517-758 | 60-2 | 414-565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X56 | 0.22 | 1.40 | 0.025 | 0.015 | 71-110 | 490-758 | 56-79 | 386-544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77-110 | 531-758 | 65-82 | 448-565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X80 | 0.22 | 1.90 | 0.025 | 0.015 | 90-120 | 621-827 | 80-102 | 552-705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82-110 | 565-758 | 70-82 | 483-565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
API 5L Lsaw Pipe is a special type of production pipes. The pipes are longitudinally submerged arc welded steel pipes. The pipes are welded from sheets which produced as submerged and welded. The There API 5L Gr B Carbon Steel LSAW Pipes and Tubes come under the API 5L specification or ISO 3183 hot rolled. The outer diameter of the pipes varies from 12 inches to 150 inches in nominal bore size. The API 5L LSAW Pipe ranges in wall thickness and schedules from S20 to XXS and up to 250mm in wall thickness.
API 5L Grade B SCH 40 LSAW Steel Pipe Manufacturer: Submerged ARC Welded Pipes, LSAW, API 5L Grade B, OD 40 Inch, WT 9.52 mm, Bevelled Ends, 12 Meters Length.
